Land & Topographical Surveys

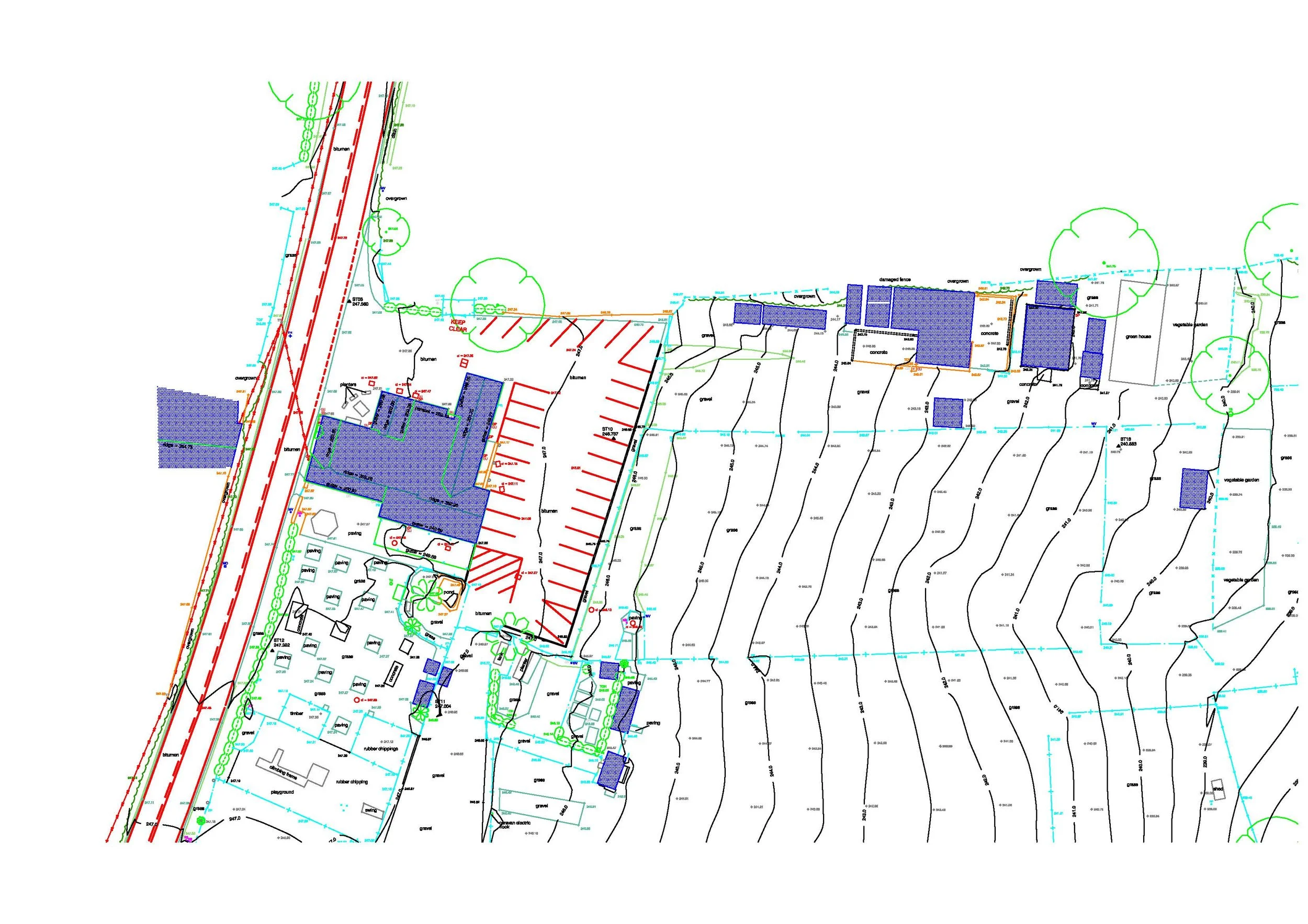

A topographical survey provides accurate data to inform planning and development. I capture all visible features of a site — ground levels, boundaries, trees, drainage, structures and utilities — producing a detailed plan you can rely on for design and planning applications.

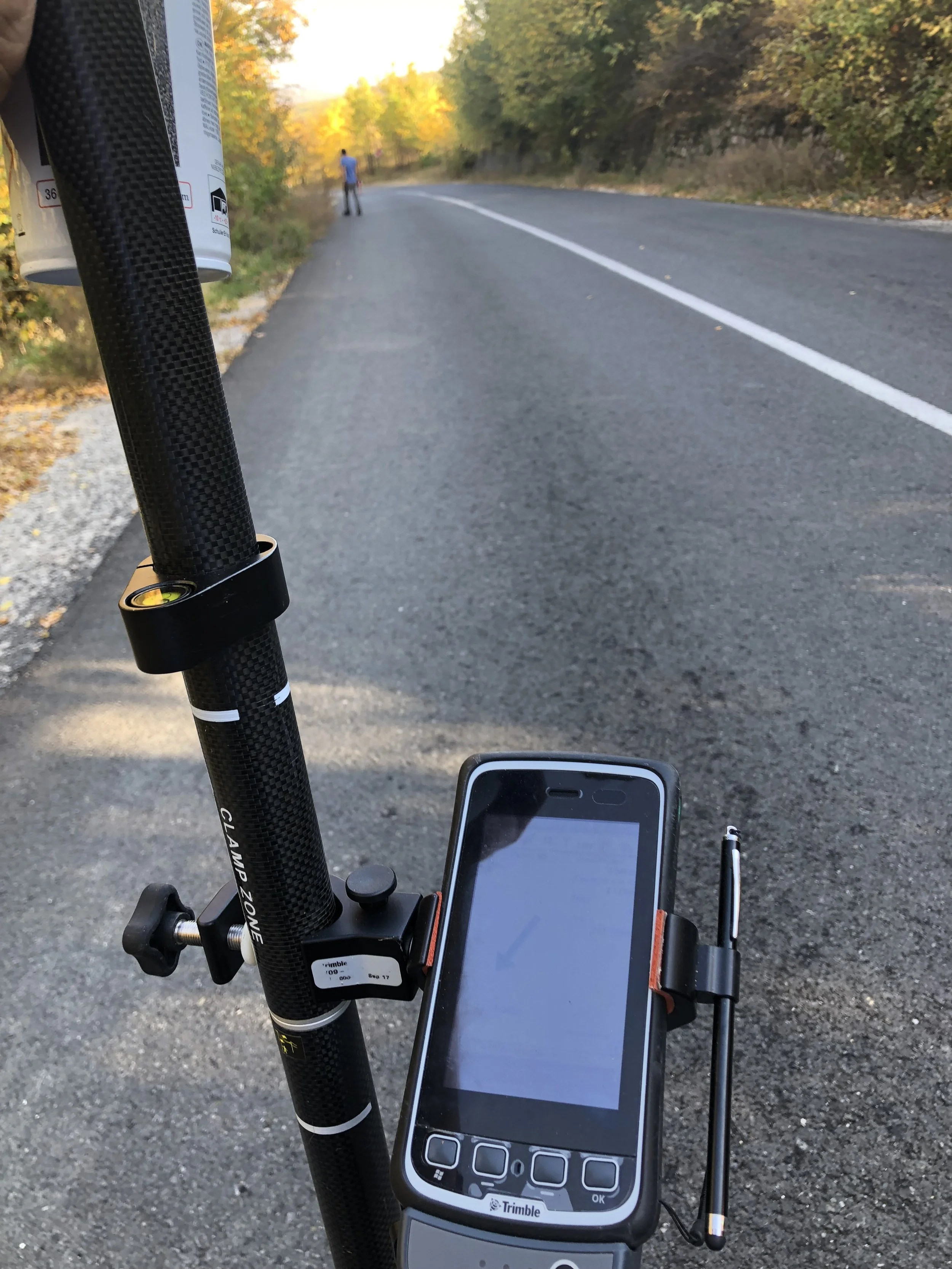

I work across residential, commercial and graded listed building sites of all sizes, using Leica and Trimble robotic total stations, GNSS systems and 3D laser scanning technology. All drawings are delivered to your CAD specification, ready to use straight away. Fast turnaround available on request.
- Ground levels and contours
- Site boundaries and boundary features
- Trees, vegetation and landscaping
- Drainage, manholes and services
- Buildings and structures
- 3D laser scanning for large or complex sites
- Delivered to your CAD specification in DWG, PDF or point cloud
Get a Quote
Measured Building Surveys

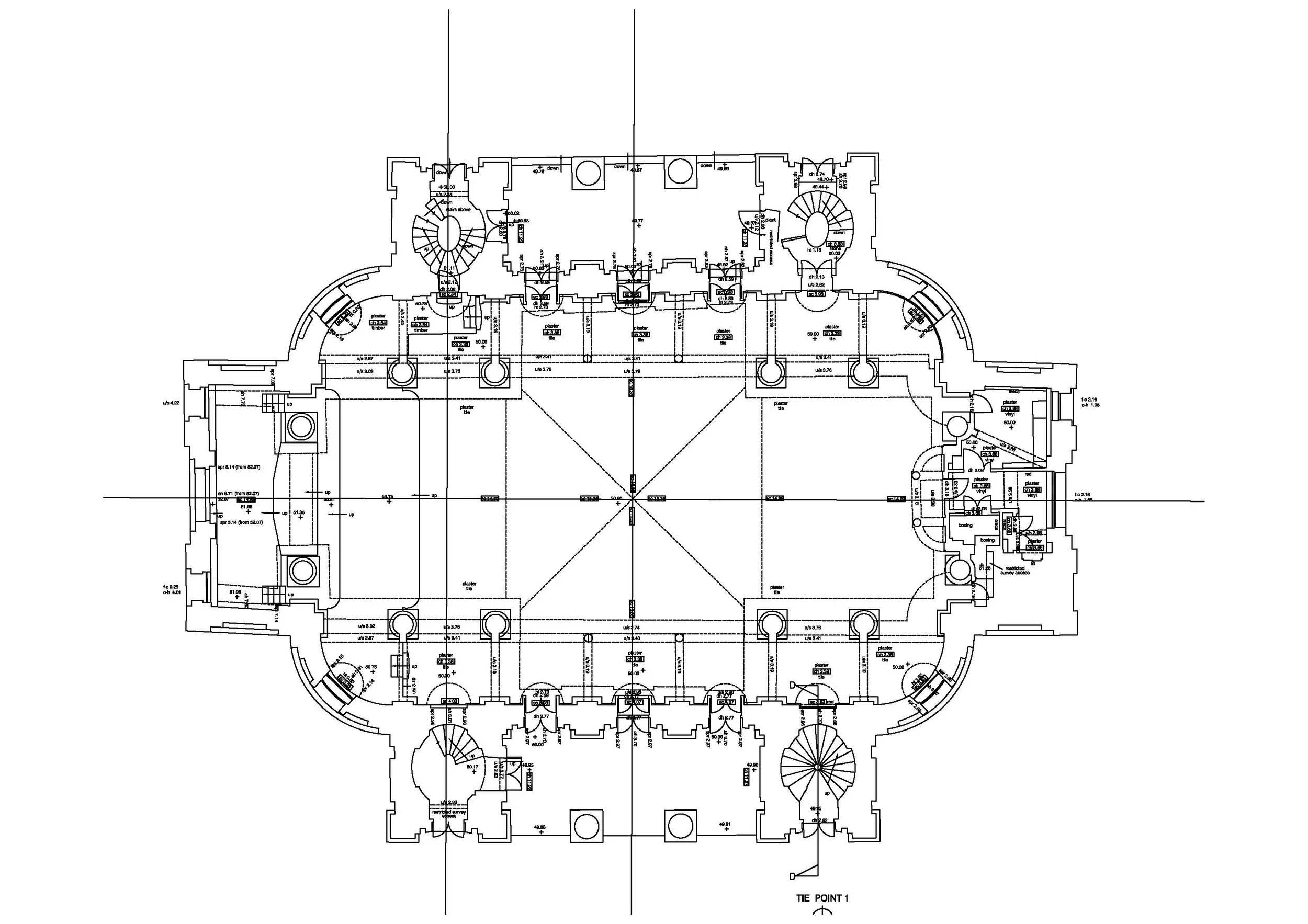

A measured building survey provides detailed floor plans, elevations and sections of an existing structure. These are essential for renovation, refurbishment, extension or change-of-use projects where accurate existing drawings are required.
I work across residential properties, commercial buildings and graded listed buildings, using both robotic total stations and 3D laser scanning to capture every detail with the highest accuracy. Point cloud data is processed using Leica Cyclone 360 and CloudWorx, delivering drawings to your CAD specification ready to use straight away. Fast turnaround available on request.
- Floor plans at all levels
- External and internal elevations
- Cross-sections and long-sections
- Roof plans and ceiling plans where required
- 3D laser scanning and point cloud processing
- 2D and 3D CAD outputs to your specification in DWG and PDF
Get a Quote
As-Built Surveys
As-built surveys capture and document the final state of a completed structure or infrastructure project. They provide an accurate record of exactly what was built, which is essential for handover, compliance, maintenance and future works.
I produce verified as-built surveys to project specification, maintaining full traceable site records and quality assurance measurement logs to ensure compliance and accuracy. I work using both robotic total stations and 3D laser scanning, with point cloud processing carried out in Leica Cyclone 360. Fast turnaround available on request.
- Verification of constructed positions against design to project specification
- 3D laser scanning and point cloud as-built capture
- Structural as-builts: precast, steel frame and reinforced concrete
- Documentation of utilities and drainage as installed
- Road and infrastructure as-builts
- Full QA measurement logs and traceable site records
- Delivered to your CAD specification in DWG, PDF or point cloud
Get a Quote
Setting Out

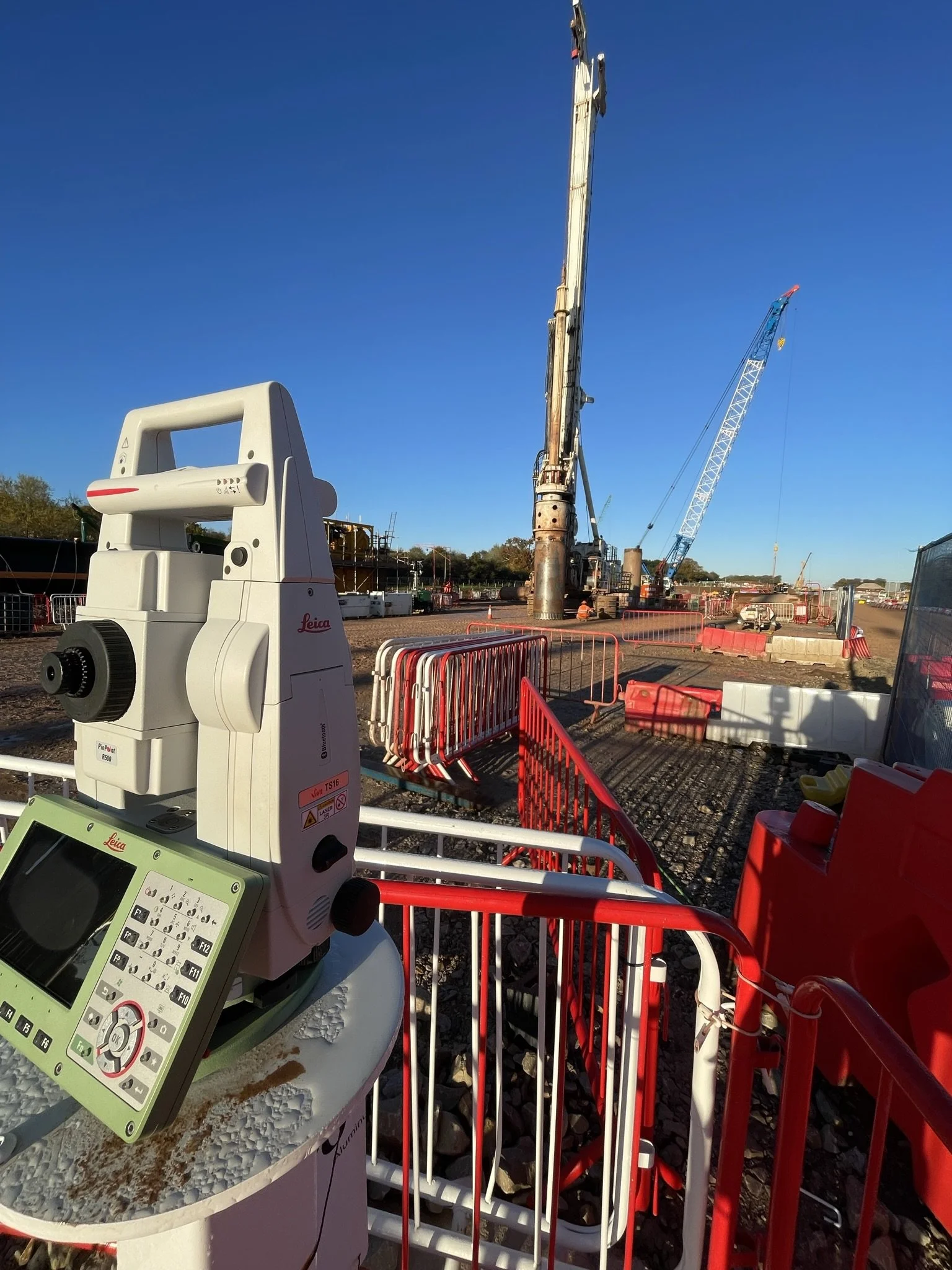

Setting out is the process of transferring positions and dimensions from design drawings onto the ground, ensuring that construction elements are placed exactly where the designer intended. Precision at this stage is critical to the success of any build.
With over 8 years of high-precision setting out experience across major UK infrastructure, commercial and residential projects, I deliver all setting out to your project specification. Fast mobilisation available for urgent programmes.
- High-accuracy setting out of precast beams and bearing positions to project specification
- Viaduct components, structural steel and reinforced concrete elements
- Pile locations, casing verticality and position checks
- Concrete pours and pile cap construction
- Multi-storey buildings in reinforced concrete and steel frame
- Foundations, building lines and structural grids
- Roads, drainage alignments and infrastructure works
- Monitoring and verification throughout construction
Get a Quote
